Lively & robust with a high dynamic range.
Cartridges are electromechanical transducers, where mechanical energy is transformed into an electrical signal. The real difference in sound happens here. The colour and life of the music come from the cartridge.
You cannot judge the cartridge by looking at just one specific part. Experience and the art of fine-tuning make a cartridge unique and special. The perfect combination of components is the key to achieve the great charismatic sound of the Pick it PRO.
We have always been looking for the best price/performance ratio, with perfect manufacturing quality and „Made in Europe“.

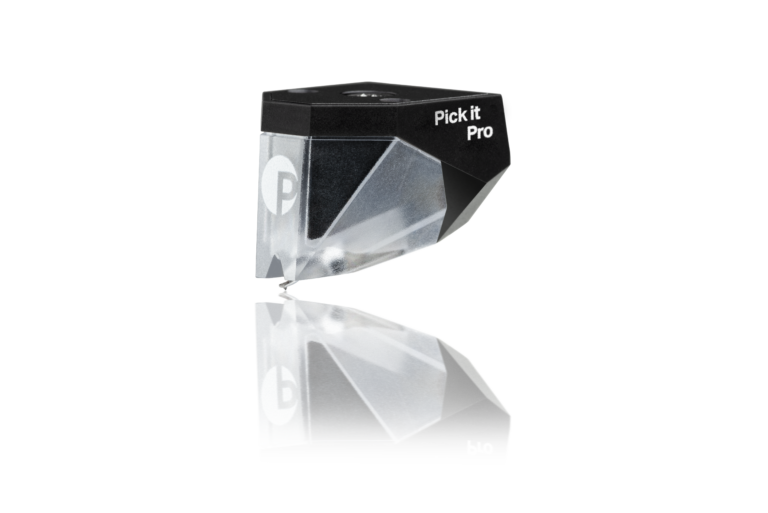

For this reason, we decided to work with Ortofon to develop a unique range of cartridges. Thanks to the excellent manufacturing skills of Ortofon we were able to produce a very special cartridge: The Pick it PRO.
|Cartridge principle||MM (Moving-Magnet)|
|Output voltage at 1 kHz||4 mV|
|Channel separation at 1 kHz||22 dB|
|Tracking ability at 315Hz||70 μm|
|Frequency response||20 – 20 000 Hz +/- 2dB|
|Stylus tip radius||r/R 8/18 μm|
|Tracking force, range||1,8 – 2,2 g (mN)|
|Tracking force, recommended||2,0 g (mN)|
|Internal impedance, DC resistance||750 Ohm|
|Recommended load resistance||47kOhm|
|Recommended load capacitance||150-300pF|
|Cartriddge weight||7,2 g|
