Digitaal-analoog konverter (DAC) Pro-Ject DAC Box DS2 ultra

649.00

Auhinnad

Tootekirjeldus

Kvaliteetne digitaal-analoog konverter (DAC) tootjalt Pro-Ject.



High end Digital/Analogue Converter with DSD & USB 2.0

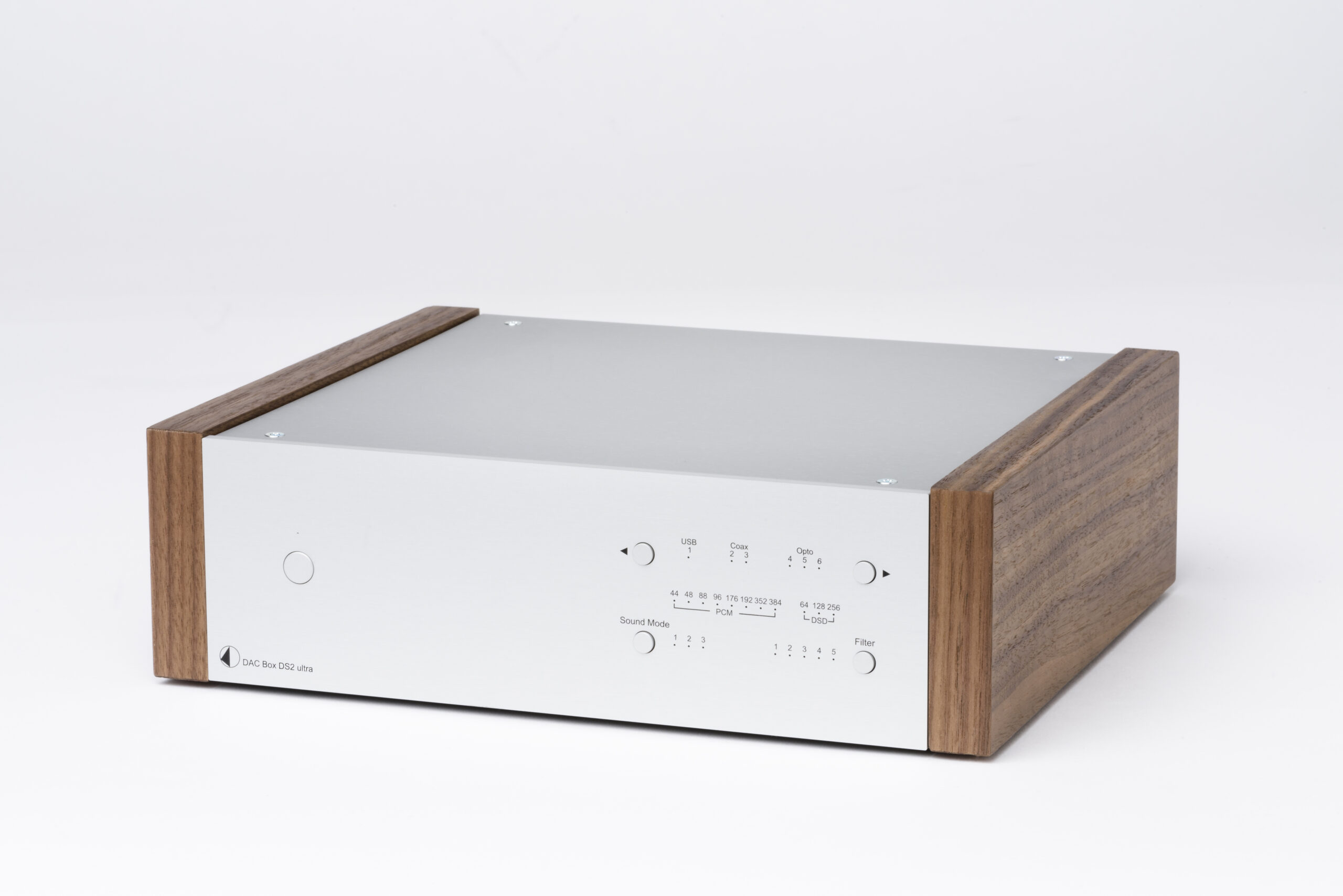

DAC Box DS2 ultra – state-of-the-art audio converter!

The advanced DAC Box DS2 ultra is an universal and very flexible D/A converter of the highest class. It offers full DSD256 support and upsampling of all input signals to 768kHz from USB, coaxial and optical inputs. This realizes high-resolution sound playback with a rich sound field and bass representation with less distortion. Due to its class-leading audio performance DAC Box DS2 ultra is an ultimate high end bargain!

Magnetic real wood side panels in walnut, rosenut & eucalyptus are available separately & not included in the scope of delivery.

D/A-converter AK4490 32-bit PCM 768kHz / DSD256
Sampling rate converter AK4137EQ upsampling to 768kHz
Sampling rates USB: up to 32bit/768kHz, DSD256 (DoP)
Coaxial: up to 24bit/192kHz
Optical: up to 24bit/192kHz
DSD-support DSD64, DSD128 and DSD256
Filter settings 5 different selectable on front
Digital inputs USB B, 3 x Optical (TOSlink®), 2 x Coaxial (S/PDIF)
Frequency response 20Hz – 50kHz (+0/-1dB)
Analogue output RCA/Cinch (Line)
Output voltage 2.2 Veff (switchable +6 dB gain gives 4.4 Veff )
Digital output Optical (TOSlink®)
THD 0.00085%
Crosstalk -117 dB (10kHz@0dB)
Signal to Noise Ratio 113 dB (20Hz – 20kHz)
Power consumption <1 Watt standby, 600mA max
Power supply 18V/1000mA DC (included)
Dimensions W x H x D 206 x 71 x 220 mm (Alu), incl. sockets, 240 x 72 x 220 mm (Wood), incl. sockets
Weight 1410 g (Alu), 1880 g (Wood), without power supply
