Dac, kõrvaklapi võimendi Pro-Ject Head Box S2 Digital



Kvaliteetne digitaal-analoog konverter ja kõrvaklapi võimendi tootjalt Pro-Ject.


Headphone amplifier and DAC with 32bit and DSD256 support

High performance DAC and headphone amplifier

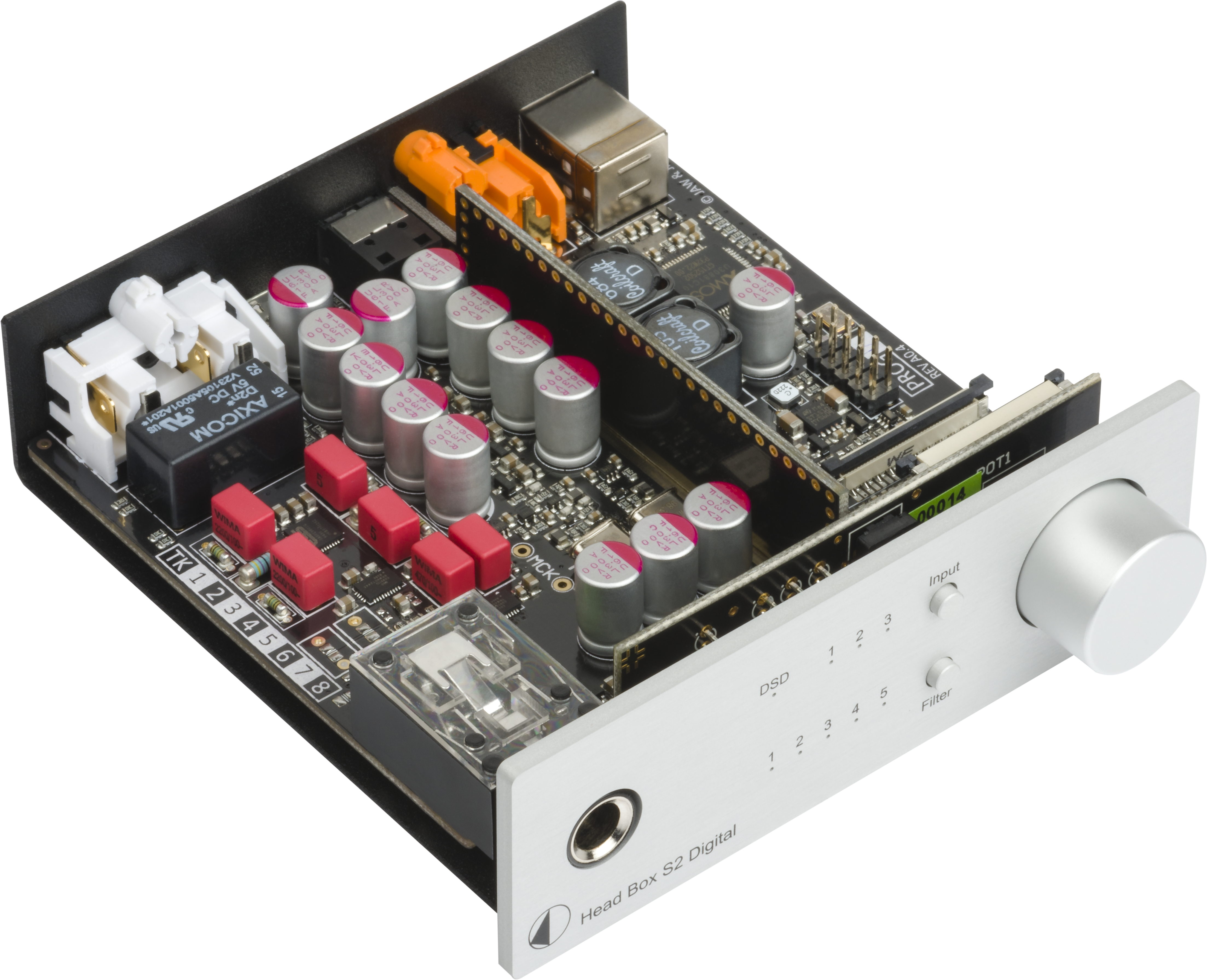

Head Box S2 Digital comes fully equipped for the highest demands of the modern audiophile. It supports playback for PCM files up to 32bit / 768kHz and DSD decoding up to quad DSD (DSD256). Head Box S2 Digital also comes with five digital filters for soundshaping to the listeners preferences. Three digital inputs ensure to connect to any source available, be it a personal computer via the USB B input or a TV set via the optical input. The coaxial S/PDIF input takes all data from a digital transport such as the CD Box DS2 T. All inputs offer support for high resolution data up to 24bit /192kHz. The USB input offers full high resolution support for all files up to PCM 32/768 and DSD256. The front seated 6.35mm headphone output delivers a clean and precise sound with a musical touch. Unwanted noise coming in through USB is double filtered to surpress them to a level where it can’t affect audio to realize an undisturbed listening experience. The new aluminium/metal casing ensures highest aesthetics and protects against vibration and interference! Head Box S2 Digital comes in silver or black.

Digital inputs 1x USB (B), 1x Co-axial (RCA), 1x Optical (TOSLink)
D/A-converter 1x ESS9038Q2M 32 bit
USB up to DSD256, PCM up to 32b/768kHz
Coaxial PCM bis 24 b / 192 kHz
Optical PCM bis 24 b / 192 kHz
Filter settings 5 different selectable on front
Frequency response 20 Hz – 20 kHz
Analogue outputs 6.3mm Headphone (front), 1x Pre Out (RCA)
Output voltage 2,05 Veff
Headphone output power 68 mW /32 Ohm, 6.6 mW / 600 Ohm
THD 0,0007% at 0 dB, 2 V RMS, 1 kHz
Dynamic range 120 dBA
Outboard Power supply 5 V /1 A DC (included)
Dimensions W x H x D 103 x 37 x 122 (including knob and connectors)
Weight 360 g without power supply
